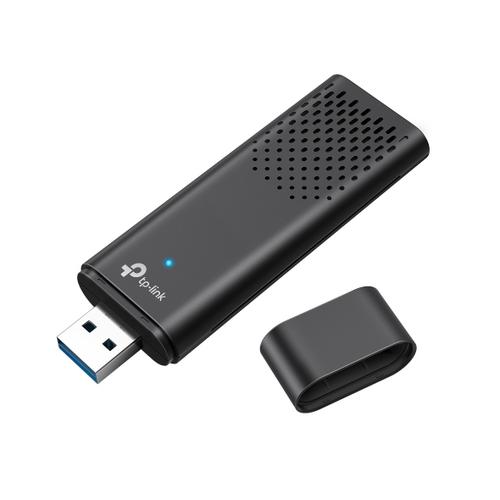

Archer TX20U New
AX1800 Dual Band Wi-Fi 6 Wireless USB Adapter
Fast WiFi 6 - Break the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
Dual Band Wireless - 2.4 GHz and 5 GHz bands for flexible connectivity.
Broader Coverage - Connect to your WiFi from wherever in your home with high-performance antennas and Beamforming.
Lower Latency Gameplay - OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC.
Improved Security - WPA3 provides the latest security enhancements for personal password protection.
SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0,
HARDWARE FEATURES
LED Status
Dimensions 90.2 × 29.2 × 12.9 mm (3.55 × 1.15 × 0.51 in)
Antenna 2× Dual-Band Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac/ax
Signal Rate 5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Transmit Power 5 GHz: 19dBm(FCC) /21.5dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 18.5dBm(CE) (EIRP)
Wireless Modes Infrastructure mode
Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
OTHERS
Certification FCC, CE, RoHS
Package Contents AX1800 Dual Band Wi-Fi 6 Wireless USB Adapter
Quick Installation Guide
System Requirements Supported operating systems include Windows 10, 11
Environment Operating Temperature: 0?~40? (32? ~104?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
| WIFI typ zařízení | síťová karta (adaptér) |
| WIFI maximální rychlost [Mb/s] | nad 1200 Mb/s |
| WIFI maximální frekvence [GHz] | 5 GHz |
| WIFI porty LAN | není |
| WIFI porty WAN | není |
| WIFI venkovní provedení (outdoor) | NE |
| WIFI anténa | interní |
| WIFI integrovaný modem ADSL | NE |
| WIFI podpora IPv6 | ANO |
| WIFI další rozhraní | PCI-e |
